Smart Lightning Monitoring System-Smart Grounding System Monitor(GSM16 Indoor Version)
PRODUCT DETAILS
Product Picture
Features
-
REPSUN Smart GSM for continuous grounding resistance test in real time based on IoT technology, as well as other parameters such as lightning intensity, lightning counter, leakage current, grounding wire connectivity, along with environmental temperature and humidity.
-
Smart GSM is capable of storing all monitored data on both local and cloud servers, and the information is displayed in real time on an LCD screen and a web platform.
-
Smart GSM is designed to trigger an immediate alarm for any anomalies in the grounding resistance, and allow customers to set user alarm thresholds. With a storage capacity of up to 2000 data records, it facilitates long-term data tracking and analysis.
-
By assessing changes in grounding resistance, Smart GSM can identify fluctuations in the grounding system and send out alarm signal in the case of disconnection of grounding wire, deterioration of grounding conditions, aging of grounding facilities, or equipment theft, which ensures the stability and safety of the grounding system.
Functions
|
Model |
Smart GSM16
|
|||
|
Test functions
|
Range
|
Alarm threshold
|
||
|
Grounding resistance
|
0.01-200Ω(Tolerance:±5%)
|
User defined
|
||
|
Surge intensity
|
0.1-100kA
|
User defined
|
||
|
Surge counter
|
0-999
|
User defined
|
||
|
Surge time
|
Year/Month/Day
|
/ | ||
|
Grounding wire connectivity
|
On/Off
|
/ | ||
|
Operating temperature
|
-40℃-65℃
|
|||
|
Humidity
|
0-99%
|
|||
Operating Principle
|
Smart Grounding System Monitor |
Sensor functions |
Necessary |
Date transmission |
Server |
Terminal |
Data center |
|
Grounding resistance,surge intensity,surge time, surge counter, grounding wire connectivity, operating temperature, humidity. |
Host |
DTU |
Cloud server |
Web platform/On site(LCD Screen) |
History record |
|
|
Grounding resistance,surge intensity,surge time, surge counter, grounding wire connectivity, operating temperature, humidity |
Host |
RS485 |
Local server |
Web platform/On site(LCD Screen) |
History record |
Specifications
|
Power Supply
|
AC/DC adapter;Input:AC100-240V,50-60Hz 0.6A;Output:DC12V 2.0A
|
|
Test Method
|
Loop grounding resistance(continuity)
|
|
Data Display
|
4 digits (53mm*26mm LCD)
|
|
Alarm Indication
|
Sound & Light alarm
|
|
Alarm Settings
|
LCD display setting
|
|
Measuring Time
|
Interval and Settable
|
|
Power Consumption
|
Backlight:20mA Max;Standby:25mA Max;Measuring:70mA Max
|
|
Remote Communication
|
Wireless transmission,5G/4G,GPRS,RS485,MOD-BUS(optional)
|
|
Accessories
|
Lightning Strike Sensor, Grounding Sensor, Power adapter
|
|
Data Records
|
Can store 2,000 data records
|
|
System Settings
|
Min,Hour,Day,Month,Year
|
|
System Date
|
A-N model
|
|
System Information
|
ID/HV/SV
|
|
Dimensions
|
144mm*74mm*89mm
|
|
Weight
|
<1kg
|

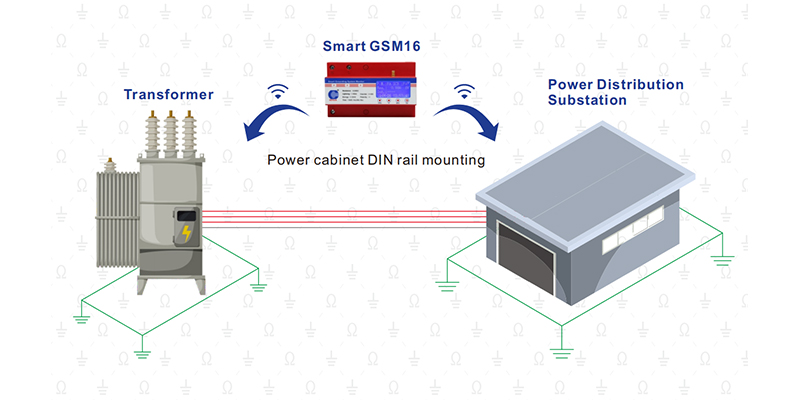

Smart GSM Application & Installation

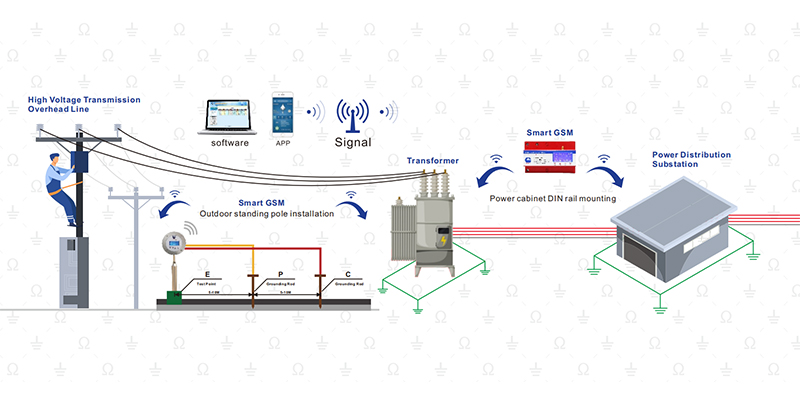

Smart GSM Installation Diagram
