Smart Grounding System Monitor (Smart GSM36)
PRODUCT DETAILS

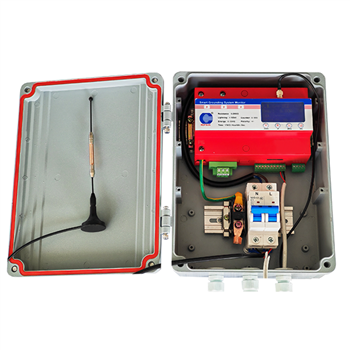

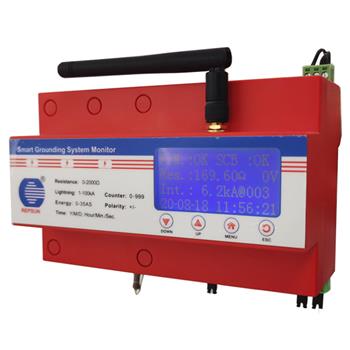

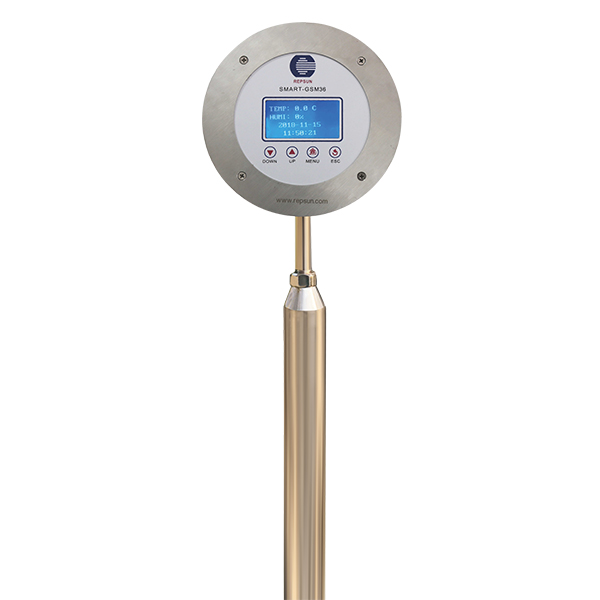

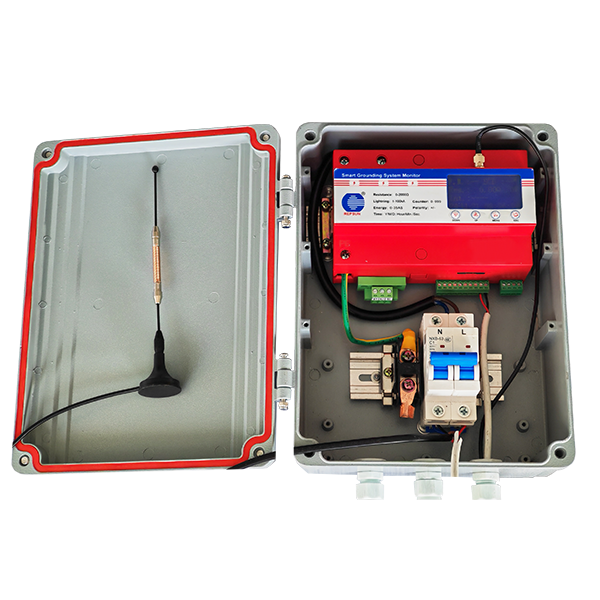

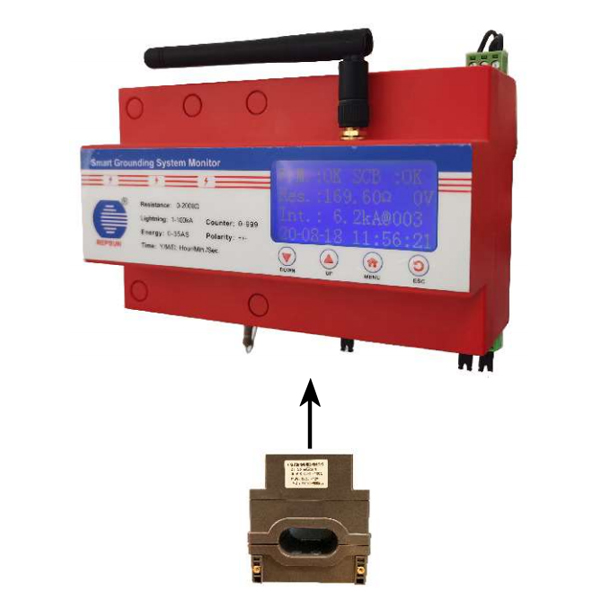

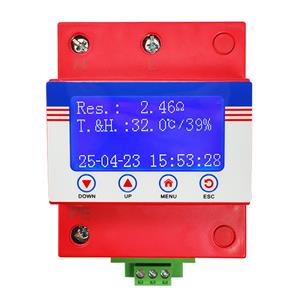

Product Picture

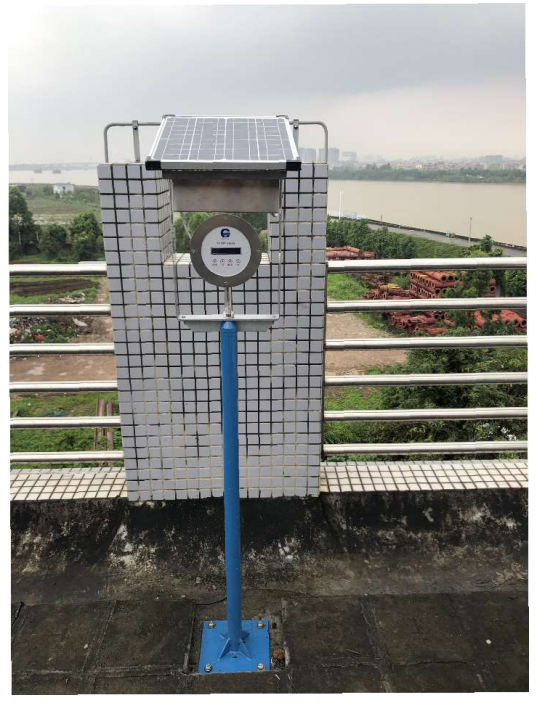

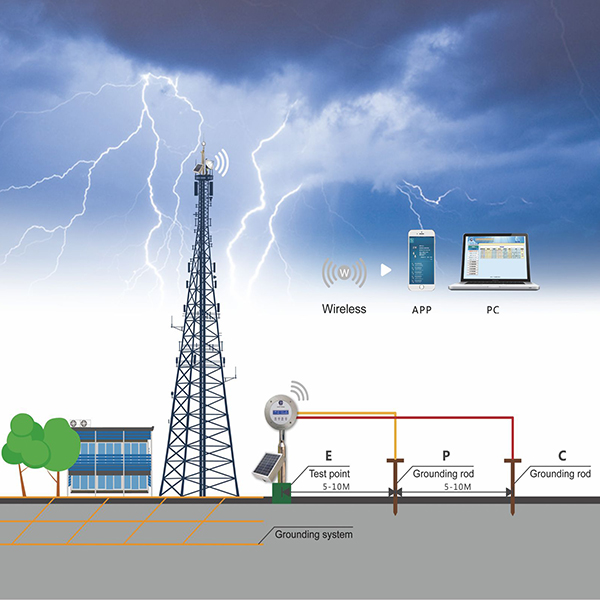

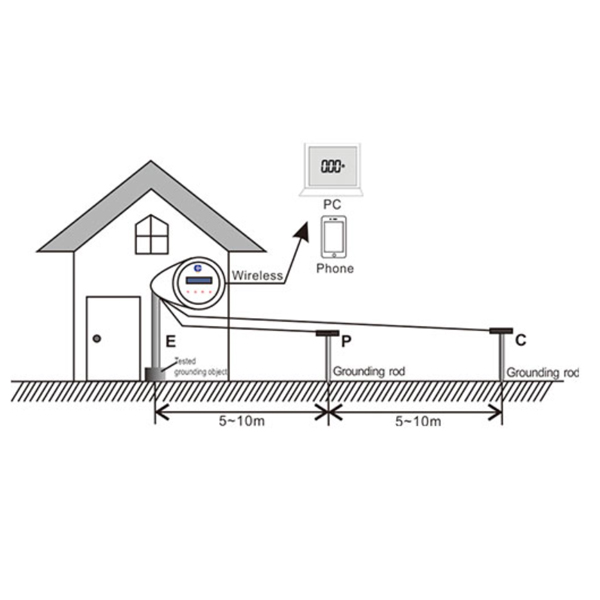

(Installation Diagram)
Features
-
REPSUN smart grounding system monitor (Smart GSM36) for continuous grounding resistance test in real time based on IoT technology and 3-point test. By monitoring grounding resistance,Smart GSM36 can identify fluctuations in the grounding system and send out alarm signal in the case of theft or aging of grounding material, deterioration of grounding conditions and disconnection of grounding device, which ensures the stability and safety of the grounding system.

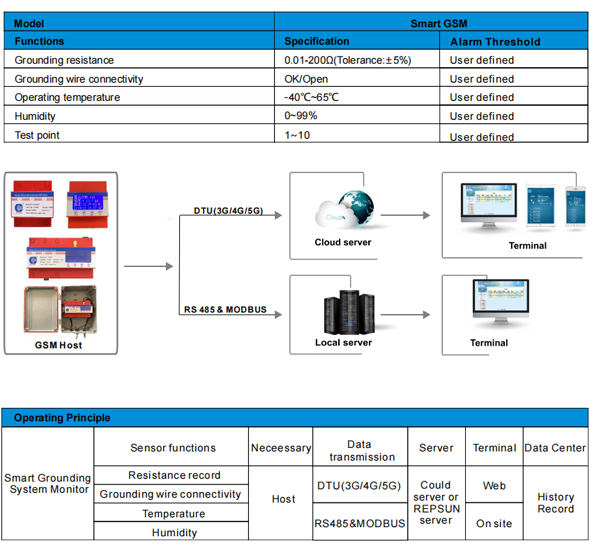

Datasheet
|
Functions
|
Specification
|
Alarm Threshold
|
|
|
Grounding Resistance
|
0.01-200Ω(Tolerance:±5%)
|
User defined
|
|
|
Lightning Intensity
|
0.1-100kA
|
User defined
|
|
|
Temperature
|
-40℃~65℃
|
User defined
|
|
|
Humidity
|
0~99%
|
User defined | |
|
Grounding Wire Connectivity
|
OK/Open
|
User defined | |
Operating Principle
