Smart Grounding System Monitor (Smart GSM26)
PRODUCT DETAILS

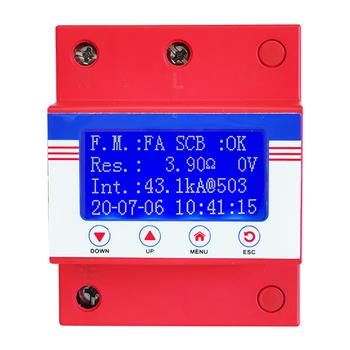

Product Picture

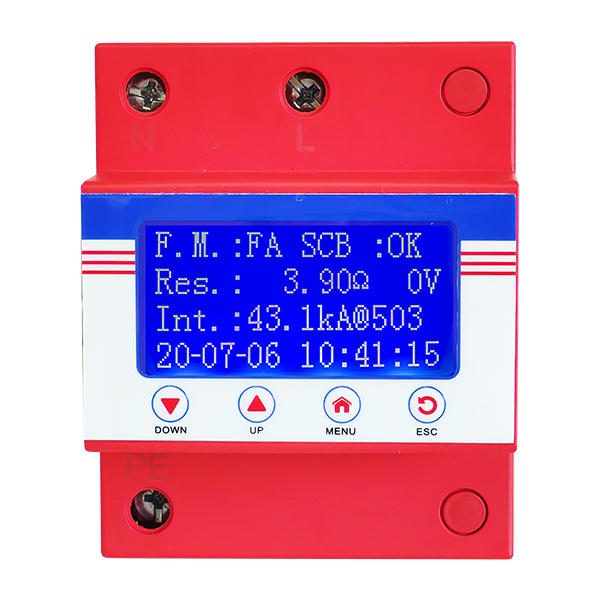

(Smart GSM26)

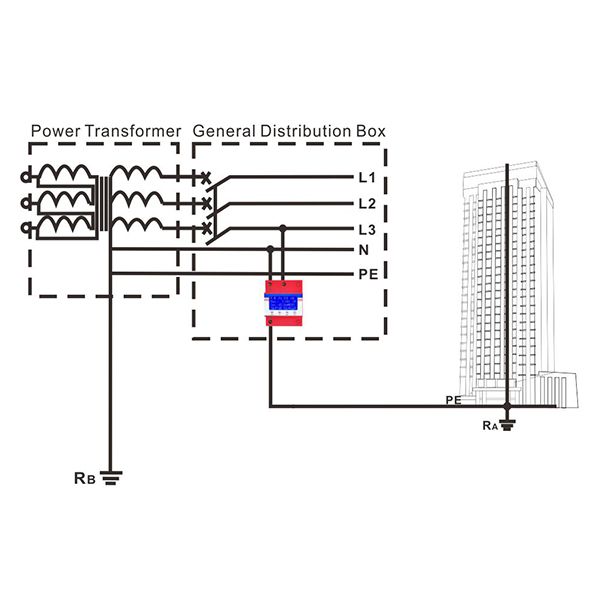

(TN-S Power Supply Systems)

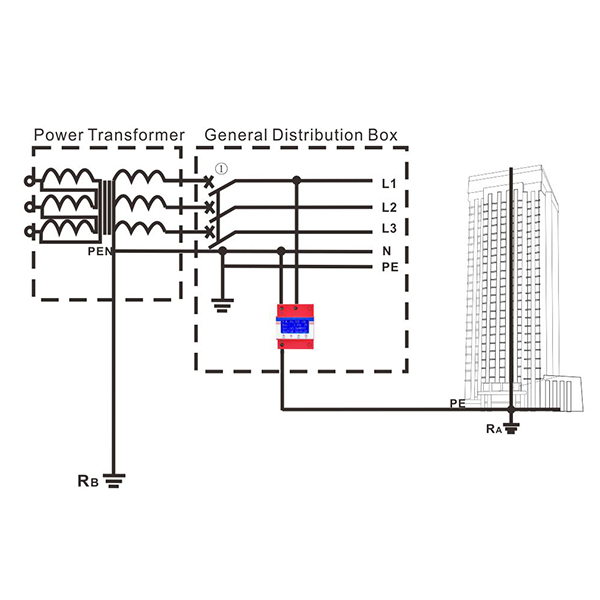

(TN-C-S Power Supply Systems)

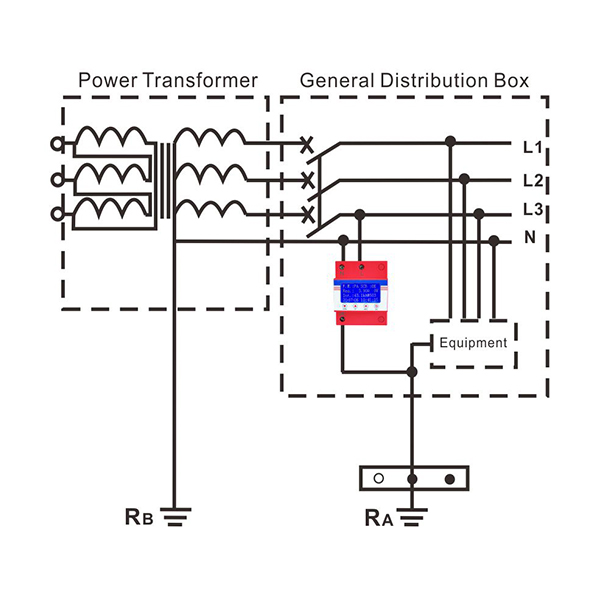

(TT Power Supply Systems)
Features
-
REPSUN smart grounding system monitor (Smart GSM26) can closely monitor the grounding resistance and the condition of grounding wire with the measurement of DIN-Rail type and contact type. The condition of grounding and grounding wire is accurately identified by Smart GSM26 through the value of resistance, which ensures proper operation of SPD all the time.
-
Thanks to the DIN-rail mounting, Smart GSM26 can be applied to the various grounding systems such as TT, TNS and TNC-S, and it provides strong support for the safe operation of electrical system.
Functions
|
Functions
|
Specification
|
Alarm Threshold
|
|
|
Grounding resistance
|
0.01-200Ω(Tolerance:±5%)
|
User defined
|
|
|
Lightning intensity
|
0.1-100kA
|
User defined
|
|
|
Temperature
|
-40℃~65℃
|
User defined
|
|
|
Humidity
|
0~99%
|
User defined | |
|
Grounding wire connectivity
|
OK/Open
|
User defined | |
Operating Principle
