Smart Grounding System Monitor (Smart GSM16)
PRODUCT DETAILS
Product Picture

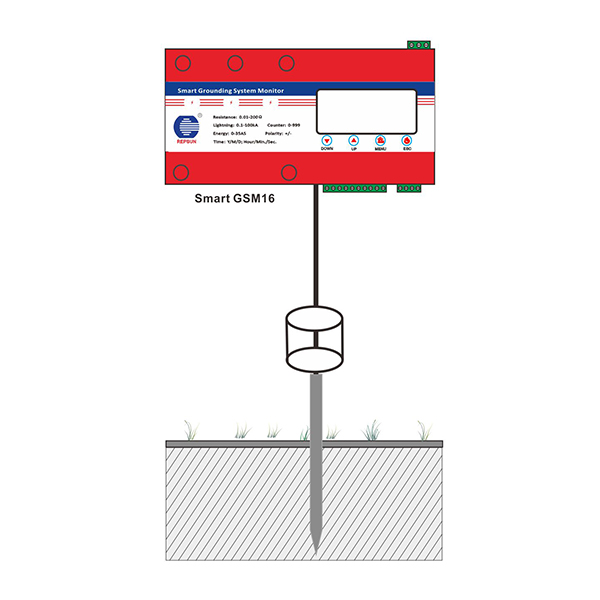

(Installation Diagram)
Features
-
REPSUN smart grounding system monitor (Smart GSM16) can continuously monitor the grounding resistance and the conditions of the grounding system in real time by the unique non-contact loop resistance measurement. Smart GSM16 can be mounted around the grounding wire, making it convenient application in various installation such as indoor, outdoor, and rooftop setting. It keeps a close monitor of the grounding resistance at all times in complex environments such as commercial buildings and industrial plants.
Functions
| Functions | Specification |
Alarm Threshold
|
|
|
Grounding resistance
|
0.01-200Ω(Tolerance:±5%)
|
User defined
|
|
|
Lightning intensity
|
0.1-100kA
|
User defined
|
|
|
Temperature
|
-40℃~65℃
|
User defined
|
|
|
Humidity
|
0~99%
|
User defined | |
|
Grounding wire connectivity
|
OK/Open
|
User defined | |
Operating Principle
