Surge Protective Device DC1500
PRODUCTS DETAIL

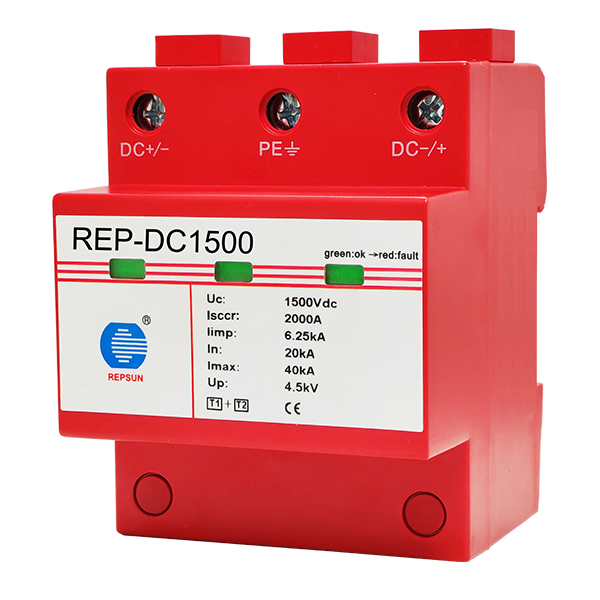

Product Picture
(REP-DC1500)72mm
Features
●DC SPD for BESS, integrate fuse thermal disconnector and mechanical disconnector in the module with safe electrical isolation.
●High reliability due to dual integrated disconnection devices.
●More reliable over-current protection thanks to integrated d.c. fuce.
●Enough safety distance with creepage distance more than 30mm.
Datasheet
|
Model |
REP-DC1500
|
|
According to IEC 61643-31:2018, EN 61643-31:2019
|
Type1+Type 2
|
|
Maximum continuous operating voltage (DC) Uc
|
≤1500V
|
|
Short-circuit current Isccr
|
2000A
|
|
Nominal discharge current(8/20μs)
[(DC+/DC-)→PE] In
|
20kA
|
|
Maximum discharge current(8/20μs)
[(DC+/DC-)→PE] Imax
|
40kA
|
|
Lightning Impulse current (10/350μs)
[(DC+/DC-)->PE) (Iimp)
|
6.25kA
|
|
Voltage protection level(Up)
|
≤4.5kV
|
|
Recommended series connection
overcurrent protector
|
63A/35kA
|
|
Response time(t.)
|
≤25ns
|
|
Leakage current
|
≤10μΑ
|
|
Internal overheating circuit breaker
|
Built-in
|
|
Operating temperature range
|
-40℃~+80℃
|
|
Work/Fault indicator |
Green: Normal ; Red: Failure
|
|
Connecting wire
|
≥4mm²
|
|
Mounting
|
35mm DIN rail,according to EN 60715
|
|
Enclosure material
|
Red thermoplastic material ,UL94 V-0
|
|
Degree of protection
|
IP20
|
|
Installation width
|
4 modules
|
