Surge Protective Device DC1200-Y

PRODUCTS DETAIL

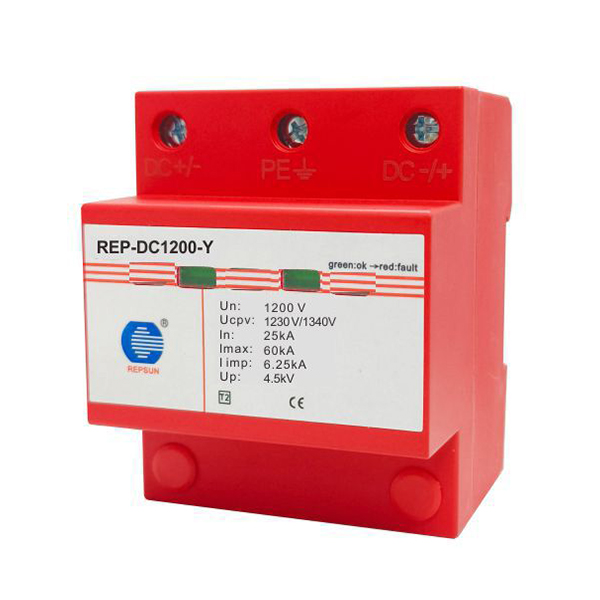

Product Picture

(REP-DC1200-Y)

Features

●DC SPD, integrate fuse thermal disconnector and mechanical disconnector in the module with safe electrical isolation.

●High reliability due to dual panted thermal disconnector technology.

●More reliable over-current protection thanks to integrated d.c. fuce.

●Enough safety distance with creepage distance more than 30mm.

Datasheet

Model	REP-DC1200-Y
According to IEC 61643-31:2018, EN 61643-31:2019	Type 2
Nominal PV System Voltage(DC) Un	1200V
Maximum continuous operating voltage (DC) Ucpv	1230V/1340V
Short-circuit current rating lscpv	2000A
Nominal discharge current(8/20μs) [(DC+/DC-)→PE] In	25kA
Maximum discharge current(8/20μs) [(DC+/DC-)→PE] Imax	60kA
Lightning Impulse current (10/350μs) [(DC+/DC-)->PE) (Iimp)	6.25kA
Total discharge current(10/350μs) [(DC+/DC-)→PE] Itotal	12.5kA
Voltage protection level(Up)	4.5kV
Response time(t.)	≤25ns
Leakage current	≤10μΑ
Internal overheating circuit breaker	Built-in
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
Connecting wire	≥4mm²
Mounting	35mm DIN rail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL94 V-0
Degree of protection	IP20
