SPD (REP-MS25T1+T2-760-5S) for Wind Turbine

Combination T1+T2 SPD for power supply system of wind turbine with spark gap+Mov technology

PRODUCTS DETAIL

Product Picture

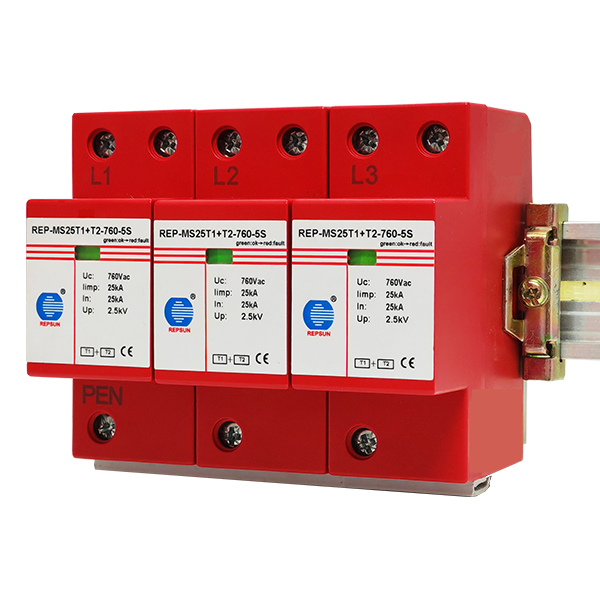

REP-MS25T1-T2-760-5S

(REP-MS25T1+T2-760-5S)108mm

Features

The combination type I +type II surge protector can be installed at zero distance from the subsequent II surge protector without decoupling inductance;

Non exhausting encapsulated spark gap technology;

The smallest size in the industry, Iimp=25kA, Uc=760Vac, saving half of the space;

High follow current extinction and limitation due to no follow current;
Reliable supervision due to new LTR energy control technology;
With remote signaling contact optional and failure indicator.

Datasheet

Type

REP-MS25T1+T2-760-5S

The SPD according to IEC/EN 61643-11

I+II/T1+T2

Energy coordination with termini equipment (≤5m)

T1+T2+T3

Nominal AC voltage(Un)

690Vac

Maximum continuous voltage(Uc)

760Vac

Lightning impulse current(10/350μs) Iimp(L-NPE) 25kA

Nominal discharge current(8/20μs) ln(L-N/N-PE)

25kA

Total discharge current(10/350μs)[L1+L2+L3-PEN] Itotal
75kA
Voltage protection level(Up)@10kA(8/20μs)
≤2.5kV
Voltage protection level(Up)@25kA(8/20μs)
≤3.5kV
Response time(t.)
≤100ns
Backup fuse
315AgL/gG
Temporary overvoltage(TOV) ) [L-PEN] Ut

440V / 120min.
Follow current extinguishing capability a.c.(L-N/N-PE) Ifi
25kA rms
Remote alarm contact

Remote alarm contact optional

Remote alarm contact capability Un/In

AC:250/0.5A         DC:250V/0.1A;   75V/0.5A

Remote alarm contact connecting wire

Max. 1.5mm²  or #16AWG

Remote communication contact type
Float switch contact
Ac switching capacity
250V/0.1A

Operating temperature range

-40℃...+80℃

Work/Fault indicator
Green: Normal ; Red: Failure
The minimum cross-sectional area of installation
4 mm² solid/flexible
The maximum cross-sectional area of installation
25 mm² flexible
Installation
35mm DINrail,according to EN 60715

Enclosure material

Red thermoplastic material ,UL 94v-0

Degree of protection

IP20

Size

6 modules
