SPD (REP-MP20T2-760-5S) for Wind Turbine

PRODUCTS DETAIL

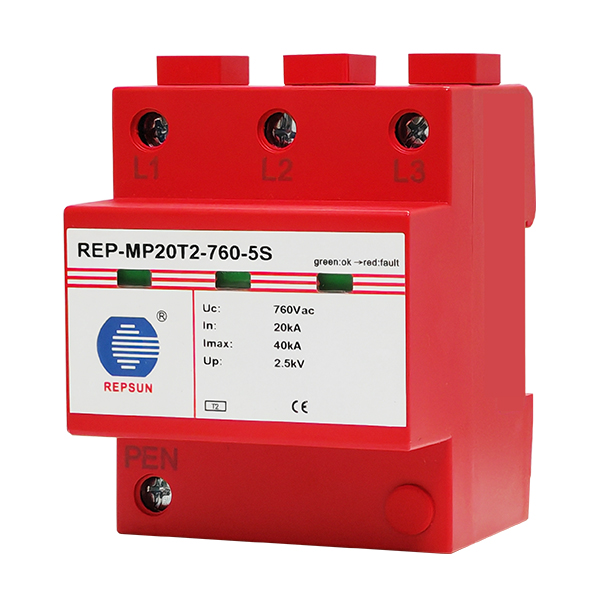

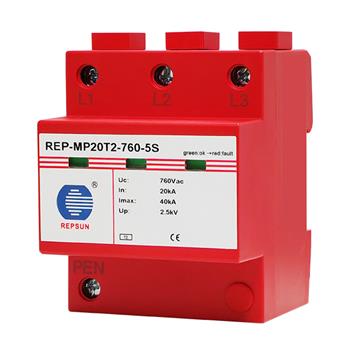

Product Picture

(REP-MP20T2-760-5S)72mm

Features

Type2 surge protector comply with IEC61643-11;

Reliable supervision due to double integrated disconnection devices;

Low voltage protection level;

Optional to use without a fuse;

Remote alarm terminal optional.

Datasheet

Type	REP-MP20T2-760-5S
The SPD according to IEC/EN 61643-11	Type 2
Energy coordination with termini equipment (≤5m)	T2
Nominal AC voltage(Un)	690Vac
Maximum continuous voltage(Uc)	760Vac
Nominal discharge current(8/20) ln(L-N/N-PE)	20kA
Maximum discharge current(8/20) lmax(L-N/N-PE)	40kA
Response time	≤25ns
Voltage protection level(Up)@20kA(8/20μs)	≤5kV
Voltage protection level(Up)@5kA(8/20μs)	≤2.5kV
Backup fuse	315AgL/gG
Temporary overvoltage(TOV) UT	900V / 5sec.
Temporary overvoltage(TOV)(UT)-Characteristic	Withstand
Remote alarm contact	Remote alarm contact optional
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire	Max. 1.5mm² or #16AWG
Remote communication contact type	Float switch contact
Ac switching capacity	250V/0.1A
Operating temperature range	-40℃...+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
The minimum cross-sectional area of installation	4mm²solid/flexible
The maximum cross-sectional area of installation	25mm²flexible
Installation	35mm DINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94v-0
The installation location	Indoor
Degree of protection	IP20
Size	4 modules
