Surge Protector(REP-MP60T2-385-XS)
PRODUCT DETAILS

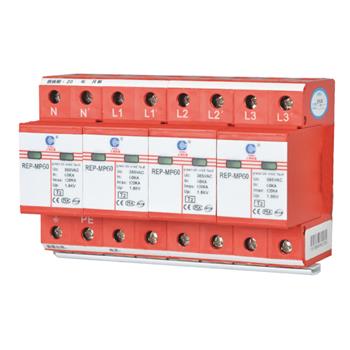

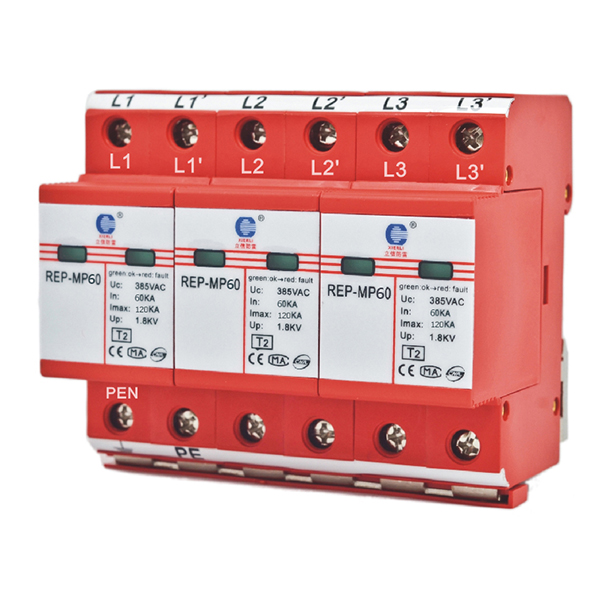

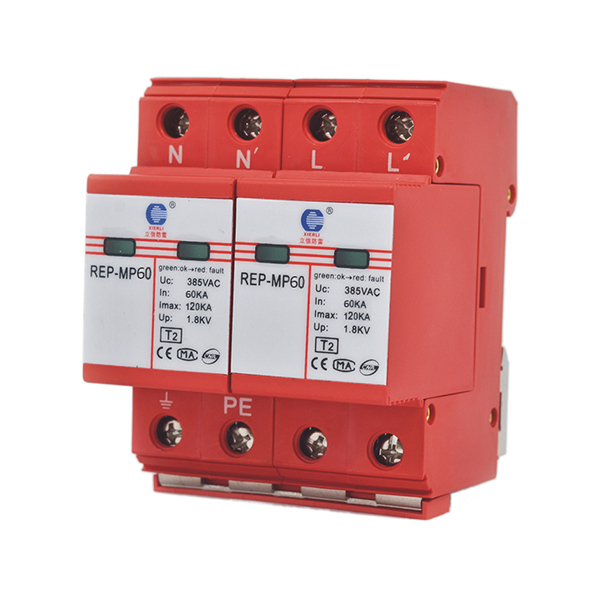

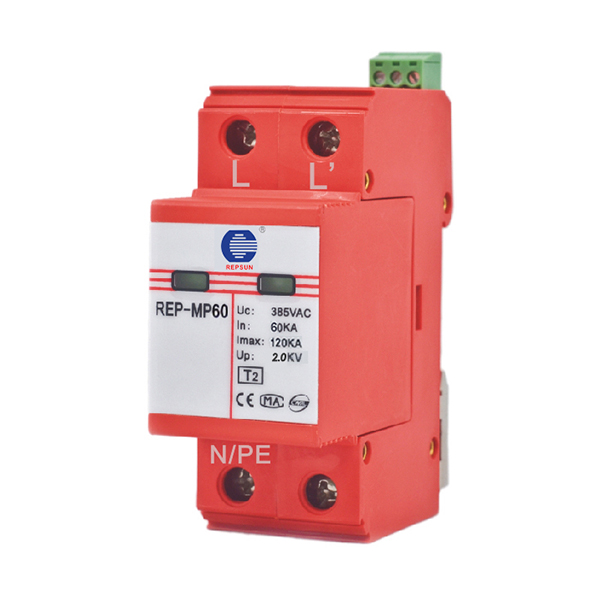

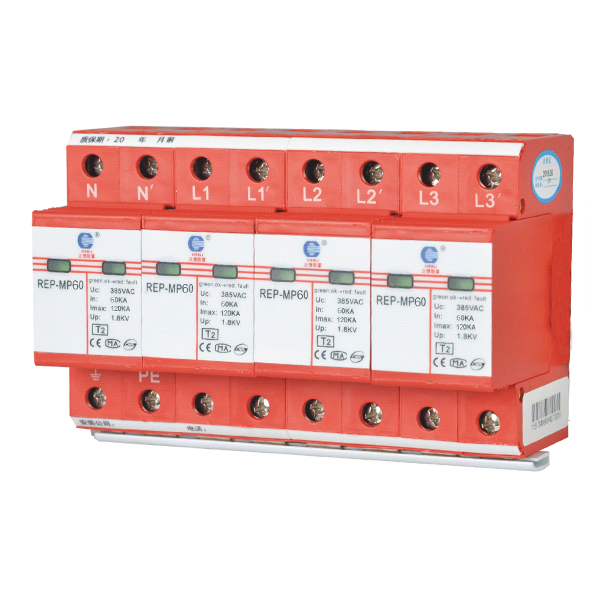

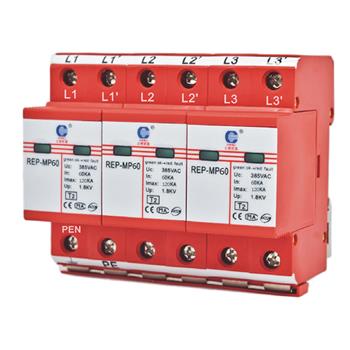

Product Picture
(L-N/PE)
(N-PE)
(1+1)
(2+0)
(3+0)
(3+1)
(4+0)
Features
Type2 surge protector SPD;
Fast response(≤25ns); low protection level;
Reliable safety due to double integrated disconnectors with double protections;
Optional to use without a back up fuse
Failure indication window, remote alarm terminal optional
Datasheet
|
Type |
REP-MP60T2-385-XS |
||||
|
The SPD according to IEC 61643-1/-11 |
II/T2 |
||||
|
Maximum continuous voltage Uc |
385Vac |
||||
|
Nominal discharge current(8/20μs )ln |
60kA |
||||
|
Maximum discharge currenl(8/20μs )lmax |
120kA |
||||
|
Voltage protection level (Up)@In |
<1.8kV |
||||
|
Response time(t.) |
25ns |
||||
|
Temporary overvoltage(TOV) UT
|
440V / 5sec.
|
||||
|
Operating temperature range(Tu) |
-40°C~+80°C | ||||
|
The minimum cross-sectional area of installation |
1.5mm² solid/flexible |
||||
|
The maximum cross-sectional area of installation |
25mm² solid/flexible |
||||
|
Installation
|
35mmDINrail,according to EN 60715
|
||||
|
Remote alarm contact |
NO/NC/C, Isolated form C |
||||
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
||||
|
Remote alarm contact connecting wire
|
Max.1.5mm² or#16AWG
|
||||
|
Degree of protection |
IP20 |
||||
|
Work/Fault indicator |
Green: Normal ; Red: Failure |
||||
|
Shell material |
Red thermoplastic material; UL94 V-0 |
||||
|
The installation location
|
Indoor | ||||
| Degree of protection | IP20 | ||||
| Size | 4/8 modules | ||||
