Smart Lightning Current Monitor (REP-LPS-LCM)
PRODUCT DETAILS

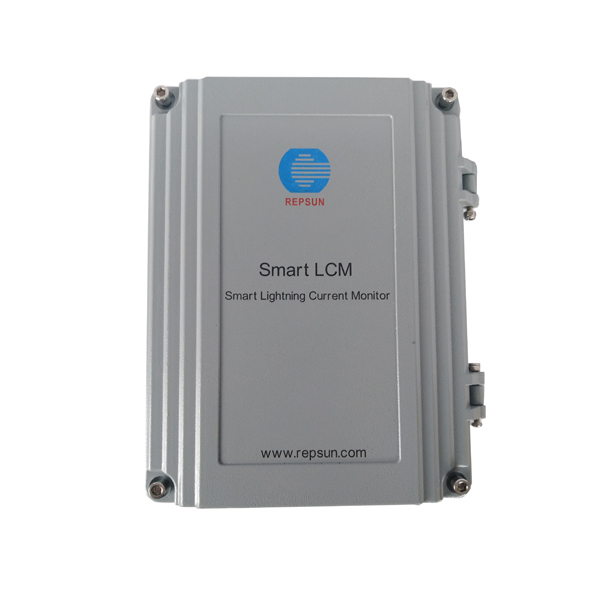

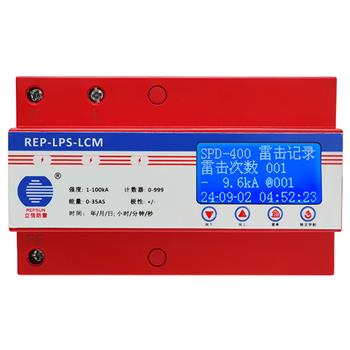

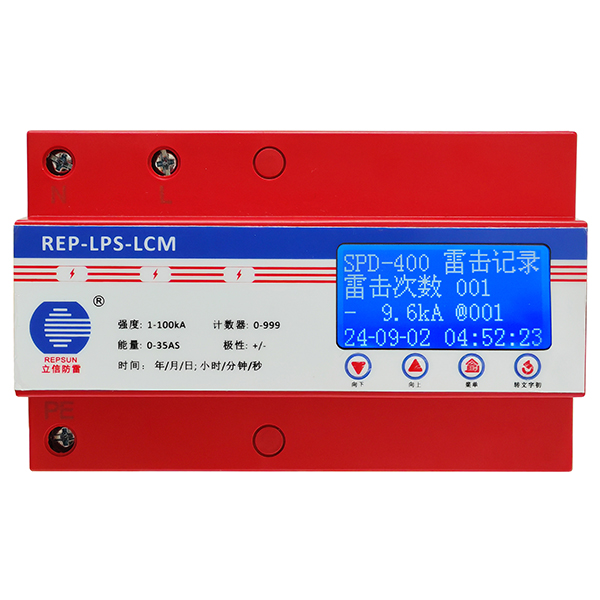

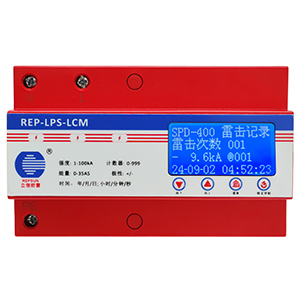

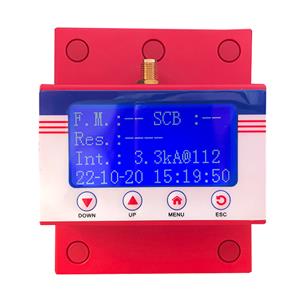

General Look
Features
●REPSUN Smart LCM for continuous monitoring lightning intensity and lightning time that might encounter based on Rogowski coil sensor
and IoT(Internet of Thing) technology in real time.
●Lightning waveform restoration technology (approximate), all data can be recorded and reviewed at site and on REPSUN web platform.
Sensor Functions & Work Principle
|
Model |
REP-LPS-LCM
|
|
Power network system
|
220V/380V |
|
Remote alarm monitoring
|
Normal/Failure
|
|
Lightning current monitoring
|
One channel
|
|
Lightning intensity (8/20μs)
|
0.1kA-100kA precision: ±5%
|
|
Lightning polarity
|
+/-
|
|
Lightning energy
|
0-35AS
|
|
Lightning counter
|
1-999
|
|
Lightning time
|
Year/Month/Day , Hour/minute/second
|
|
Communication Mode
|
RS485 serial communication/ Wireless (2G/3G/4G optional)/ Modbus RTU protocol
|
|
Display module
|
153×26mm Dot-matrix LCD display (with backlight)
|
|
Operating temperature
|
-20℃~+60℃
|
|
Humidity
|
10%~90%(40℃)
|
|
Input power
|
AC220V or DC24V
|
|
Power consumption
|
<5W
|
|
Installation type
|
Wall-mounted,bench-mounted, Din Rail mounted
|
Operating Principle
|
Smart Lightning Current Monitor |
Sensor Functions |
Necessary |
Data Transmission |
Server |
Terminal |
Data Center |
|
Lightning intensity
|
Host |
DTU(4G) |
Cloud Server
|
Web
Platform
/OnSite
(LCDScreen)
|
History Record |
|
|
Lightning polarity
|
||||||
| Lightning energy | ||||||
| Lightning counter |
RS485&MODBUS
|
Local Server
|
||||
| Lightning time | ||||||
| Temperature | ||||||
| Humidity |
