Smart ESE Lightning Rod (Smart ESE)
PRODUCT DETAILS

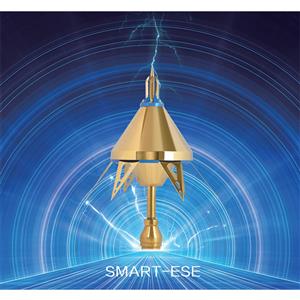

Product Picture

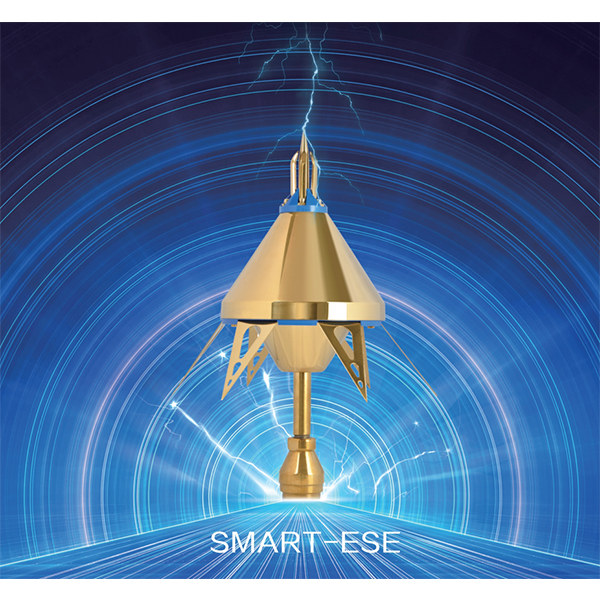

(Smart ESE88)
Smart ESE88(Golden)
Features
Based on the traditional early streamer emission technology,REPSUN smart ESE Lightning Rod integrates the IoT technology to realize the smart lightning protection functions. It can not only provide traditional lightning protection, but also monitor the operation state of the lightning rod, the lightning strike and the temperature and humidity of the environment in real time. All monitoring data can be stored synchronously on the local server and the cloud server, and displayed in real time through the LCD screen and web platform. Additionally, REPSUN smart ESE Lightning Rod can quickly trigger alarms when operational anomalies occur and supports user-defined alarm thresholds according to their own needs.
Specifications
|
Model
|
Smart ESE88
|
|
Characteristics
|
|
|
Efficiency ΔT
|
60μs
|
|
Standard deviation ESE / Single rod σ
|
σPDA <0.4σ pts
|
|
Lightning current withstanding test (10/350µs) Iimp
|
100kA (normative test
|
|
Maximum current withstanding test (8/20µs) Imax
|
200kA (Unicamp)
|
|
Upward pole
|
6
|
|
Down pole
|
6
|
|
Net Weight
|
4.0kg
|
|
Operating principle
|
|
|
Detection of download leader
|
Continuous measuring of electric field gradient
|
|
Upward streamer emission
|
Sparking by High Voltage Impulse
|
|
Internal circuits
|
6 independent circuits
|
|
Central rod
|
Stainless Steel 304,Φ20mm
|
|
Metal housing
|
Stainless Steel 304
|
|
On-site testing capabilities
|
REP-ESE TESTER
|
|
Maintenance
|
No need to connect the power source
|
|
Warranty
|
10 years
|
|
Mechanical specifications
|
|
|
Fixing on pole
|
M20 Thread
|
|
Down conductor connection
|
Adapter (optional) Clamp
|
|
Certifications
|
|
|
NF C 17 102:2011, Annexe C
|
Beijing CNAS SPD test center
|
|
ISO 9001 : 2008
|
No.:04920Q01540R1M-2
|
Sensor Functions
Sens
r Functions & Work Principl
|
Model
|
Smart ESE
|
|
Sensor Functions
|
Reference value
|
|
ESE status
|
Close:Normal; Open:Abnormal
|
|
Lightning intensity(8/20μs)
|
Range:0.1kA-100kA
|
|
Lightning time
|
Min,Hour,Day,Month,Year
|
|
Lightning counter
|
0-999
|
|
Operating temperature
|
Range: -20℃~+65℃
|
|
Humidity
|
＜90%
|

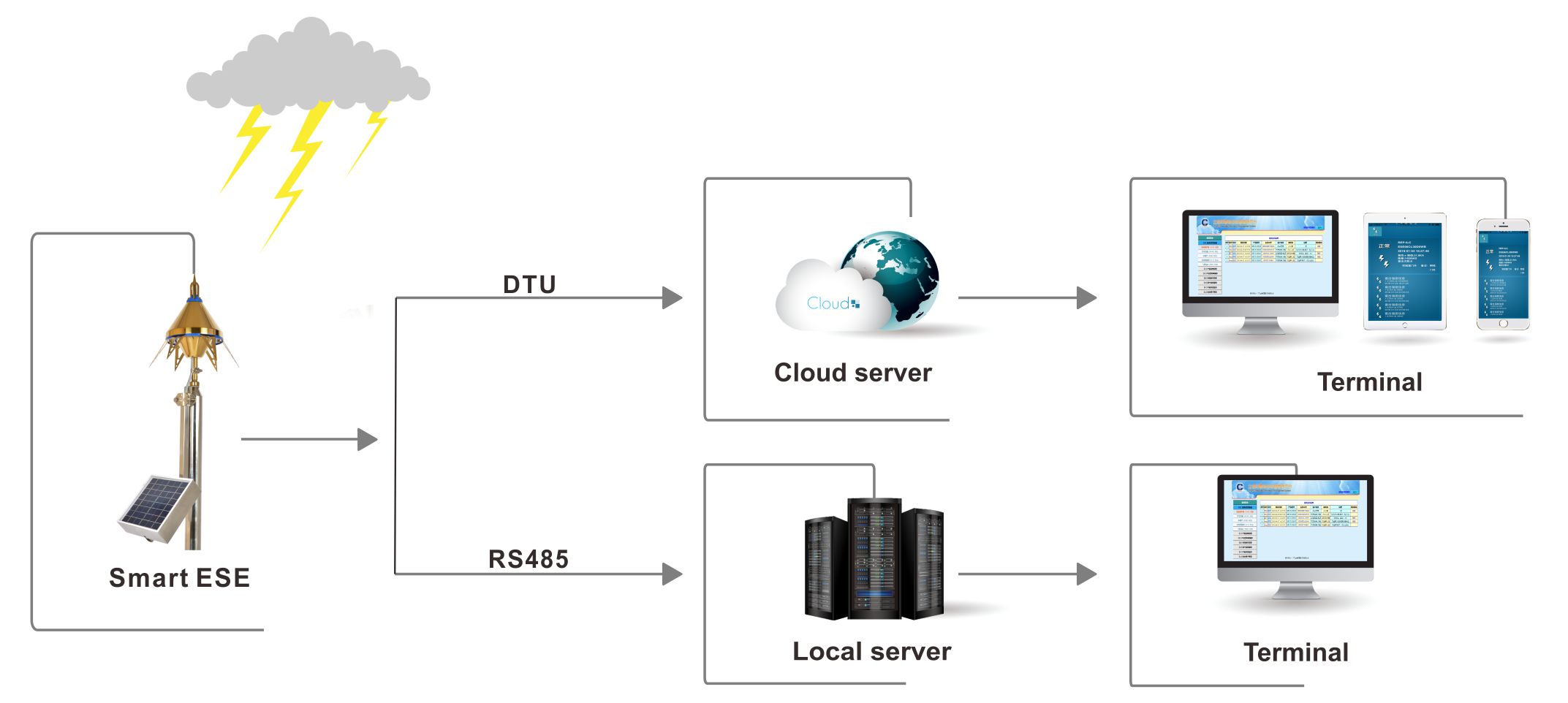

Operating Principle
|
Smart ESE
Lightning Rod
|
Sensor Functions
|
Neceessary
|
Data
Transmission
|
Server
|
Terminal
|
Data Center
|
|
Lightning Rod
|
Host
|
DTU(4G)
|
Cloud
Server
|
Web |
History
Record
|
|
|
ESE Status
|
||||||
|
Lightning Intensity
|
||||||
|
Lightning Time
|
RS485 |
Local
Server
|
On site | |||
|
Lightning Counter
|
||||||
|
Operating Temperature
|
||||||
|
Humidity
|

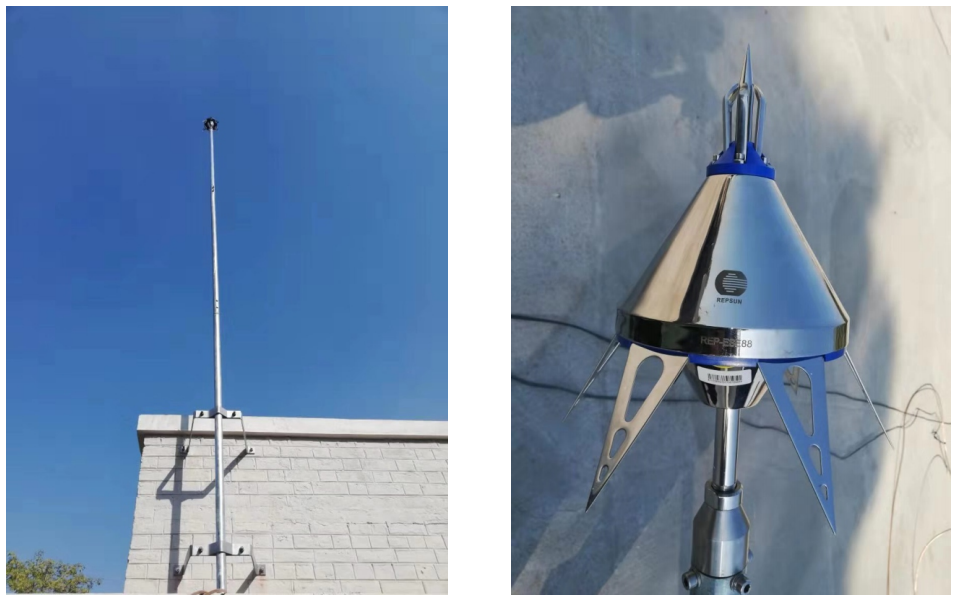

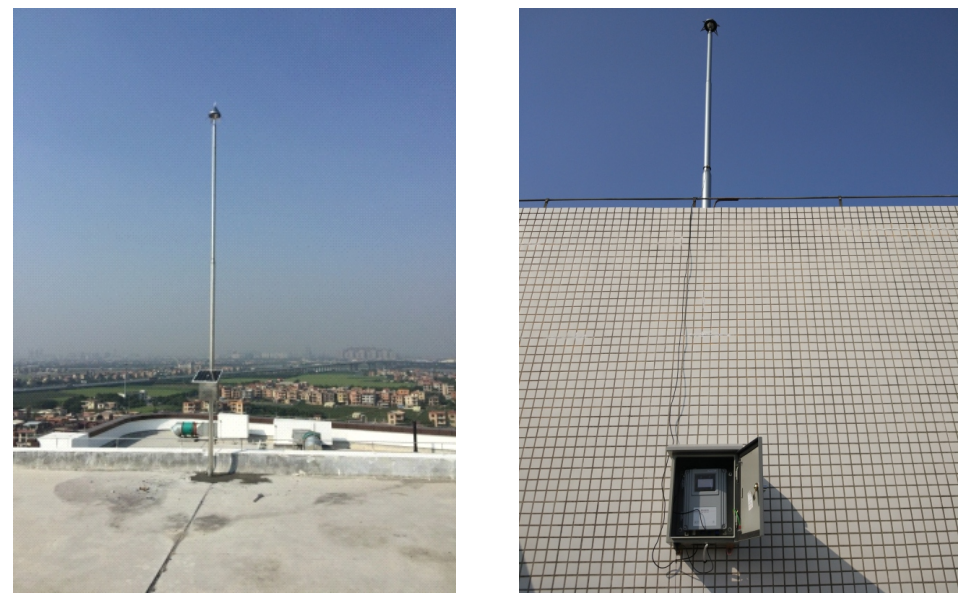

Smart ESE installation
