Smart Lightning Warning System(Smart LWS)
PRODUCT DETAILS

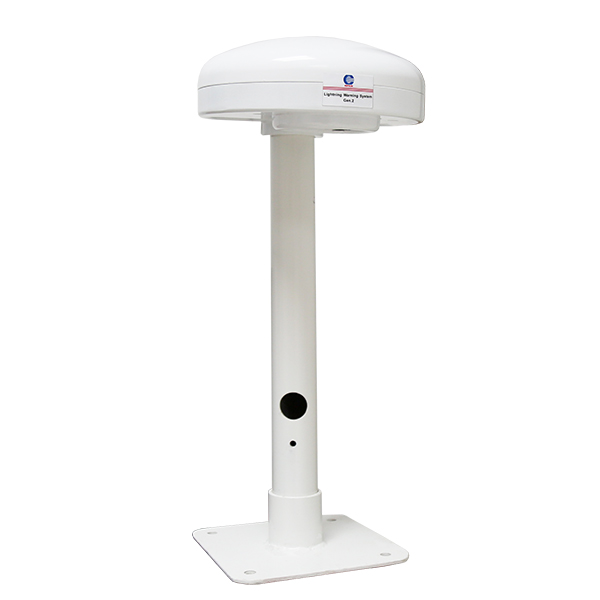

Product Picture
Features
-
1: Measurement of electric field strength based on electrostatic field principle;
-
2: Measure electric field strength and eliminate industrial interference signals in different ways;
-
3: Effective protection of measuring electrodes in harsh environments;
-
4: The mechanical part consists of electrodes and spiral motors; resist acid contamination;
-
5: Wide detection range;
-
6: Long service life, especially the rotating parts.
Datasheet
|
Probe size |
240*100*240(mm)
|
|||
|
Monitoring radius |
15-20 km(According to site characteristics)
|
|||
|
Measuring range |
+/- 300 kv/m |
|||
|
Precision |
10 v/m
|
|||
|
Early warning |
Level 3 Lightning Alarm
|
|||
|
Sample rate
|
5 ms
|
|||
|
Electrical,Communication
|
24VDC、RS485
|
|||
|
Enclosure
|
Aluminum die casting,inverted
|
|||
|
Temperature、Humidity
|
-23℃~65℃、0%~100%
|
|||
| Degree of protection | IP 65 | |||
Operating Principle
