Surge Protector (REP-MP20T2-275-1S/3S)

T2 surge protective device;T2 SPD;T2 surge protector;T2 surge arrestor;

PRODUCTS DETAIL

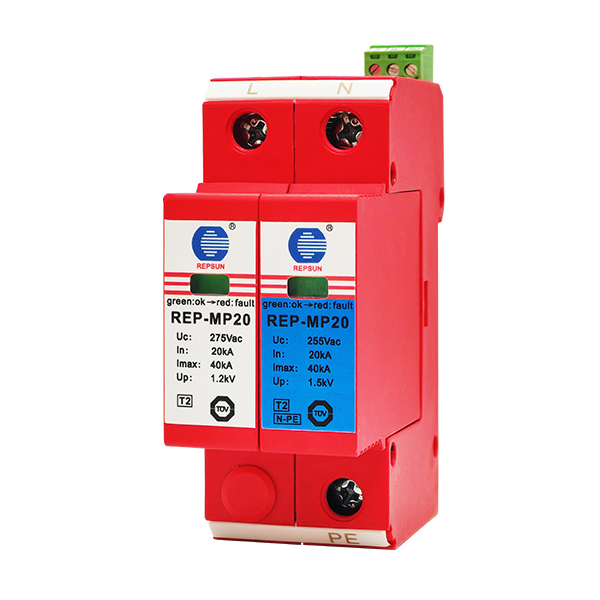

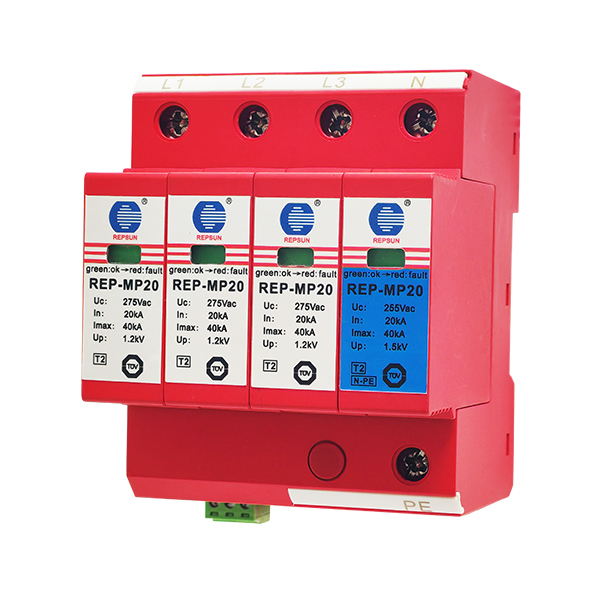

Product Picture

Features

Type 2 surge protector SPD;Low voltage protection level
Reliable safety due to double integrated disconnectors devices with double protections
Optional to use without a back up fuse
Failure indication window, remote alarm terminal optional

Datasheet

Type	REP-MP20	REP-MP20NPE
The SPD according to IEC61643:11	T2/II	T2/II
Nominal AC voltage(Un)	230/400VAC	230/400VAC
Maximum continuous voltage(Uc)	385VAC	385VAC
Nominal discharge current(8/20μs)In	20kA	20kA
Maximum discharge current(8/20μs)Imax	40kA	40kA
Voltage protection level(Up)	1.5kV	1.5kV
Response time	25ns[L-N/PE] / 100ns[N-PE]
Operating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure
Enclosure material	Flame retardant material UL94-V0
