Surge Protector(REP-BC25T1+T2-440-1S)

PRODUCTS DETAIL

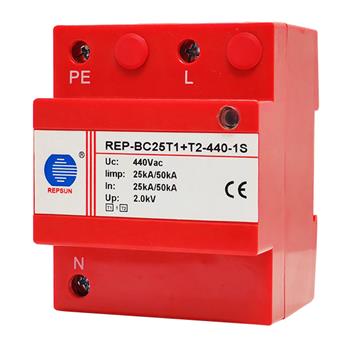

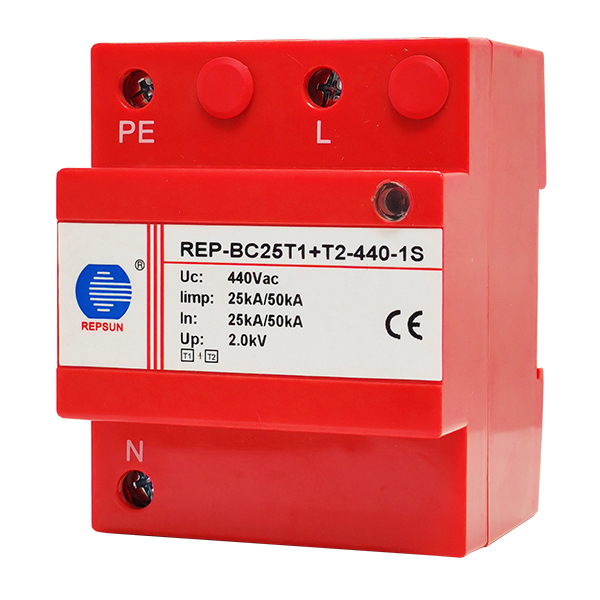

Product Picture

Features

●Combination T1+T2 SPD surge protector for single phase;

●Non exhausting encapsulated spark gap technology with extremely high surge capacity;

●High follow current extinction and limitation due to no follow current;

●Reliable supervision due to new LTR energy control technology;

●With remote signaling contact optional and light failure indicator.

Datasheet

Model	REP-BC25T1+T2-440-1S
The SPD according to IEC/EN 61643-11	I+II/T1+T2
Nominal AC voltage(Un)	400Vac(50/60Hz)
Maximum continuous voltage(Uc)	440Vac(50/60Hz)
Lightning impulse current(10/350μs) limp (L-N/N-PE)	25kA/50kA
Specific energy(L-N)/(N-PE)(W/R)	156.25kJ/ohms/312.50kJ/ohms
Nominal discharge current(8/20μs) ln(L-N/N-PE)	25kA/50kA
Maximum discharge current(8/20μs) lmax	100kA
Response time	≤100ns
Voltage protection level Up @ln	≤2.0kV
Follow current extinguishing capability a.c. Ifi(L-N/N-PE)	25kA rms/100A rms
Temporary overvoltage(TOV)(L-N)(UT)-Characteristic	763V/120min-withstand
Temporary overvoltage(TOV)(N-PE)(UT)-Characteristic	1200V/200ms-withstand
Let-Through-Energy in combination with an MOV S20K275(Iimp=2.5...25kA)	＜0.5J
Short-circuit current rating Isscr	25kArms
Backup fuse(only required if not already provided in mains)	≤315A gL/gG
Remote alarm contact	NC/C,
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire	Max. 1.5mm² or #16AWG
Operating temperature range	-40℃...+80℃
Fault indicator	Light-off: Normal ; Light-on: Failure
Cross-sectional area(min.)	1.5mm² solid/flexible
Cross-sectional area(max.)	35mm² flexible
For mounting on	35mm DIN rail
Enclosure material	Red thermoplastic, UL 94 V-0
Degree of protection	IP20
Size	4 modules
