Surge Protector(REP-B50T1-320-3S)
PRODUCTS DETAIL

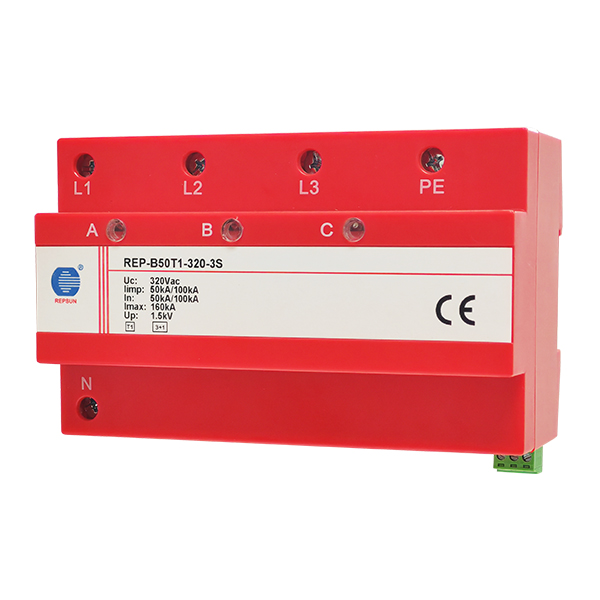

Product Picture
Features
●Type1 SPD surge protector for three phases;
●Non exhausting encapsulated spark gap technology with extremely high surge capacity;
●High follow current extinction and limitation due to no follow current;
●Reliable supervision due to new LTR energy control technology;
●With remote signaling contact optional and light failure indicator.
Datasheet
|
Model |
REP-B50T1-320-3S
|
||
|
The SPD according to IEC/EN 61643-11
|
T1
|
||
|
Nominal AC voltage (Un)
|
230/400Vac(50/60Hz)
|
||
|
Maximum continuous voltage(Uc)
|
320Vac(50/60Hz)
|
||
|
Lightning impulse current(10/350μs) Iimp(L-N/N-PE)
|
50kA/100kA
|
||
|
Nominal discharge current(8/20μs) In(L-N/N-PE)
|
50kA/100kA
|
||
|
Maximum discharge current(8/20μs) Imax(L-N/N-PE)
|
160kA
|
||
|
Response time tA
|
≤100ns
|
||
|
Voltage protection level Up@In
|
≤1.5 kV
|
||
|
Temporary overvoltage(TOV)(L-N)(UT)-Characteristic
|
≥440V/5sec.-withstand
|
||
| Temporary overvoltage(TOV)(L-PE)(UT)-Characteristic | ≥1200V/200ms-withstand | ||
|
Remote alarm contact
|
NC/C,
|
||
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
||
|
Remote alarm contact connecting wire
|
Max.1.5mm² or #16AWG
|
||
|
Operating temperature range
|
-40℃...+80℃
|
||
|
Fault indicator
|
Light-off: Normal ; Light-on: Failure
|
||
|
Cross-sectional area (min.)
|
1.5mm² solid/flexible
|
||
|
Cross-sectional area (max.)
|
35mm² flexible
|
||
|
Installation
|
35mm DIN rail,according to EN 60715
|
||
|
Enclosure material
|
Red thermoplastic material ,UL94 V-0
|
||
|
Degree of protection
|
IP20
|
||
|
Size
|
8 modules
|
||
